Arrow 303 Door Closer

Arrow 303 Door Closer

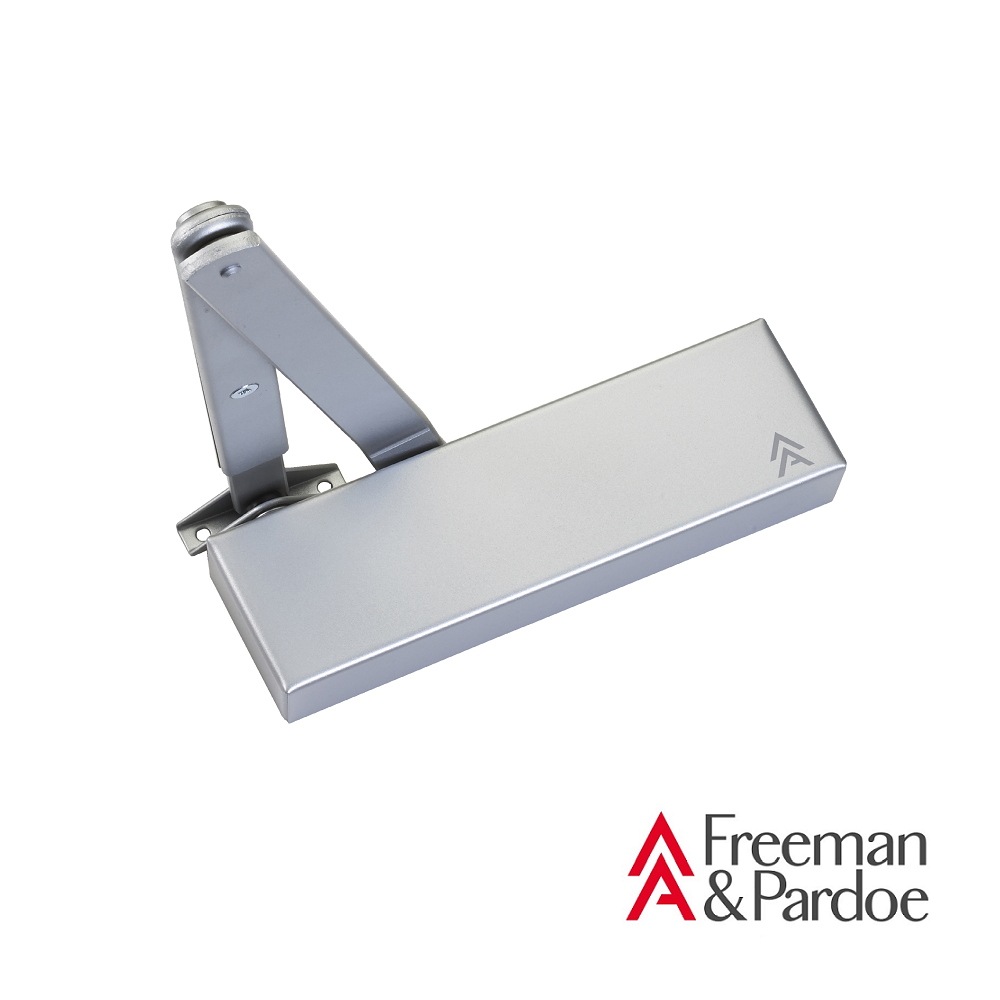

Image of Arrow 303 Door Closer

Fixed Power 3 fire door closer incorporating the UK’s most innovative patented Ease of Access technology.

  • From:

    £0.00 (exc VAT)

Customise and add to your basket:

Please note: The lead times of Metallic and Special Finishes will vary depending on finish and stock levels.

  1. Standard Silver
  2. Metallic
  1. Silver

    Silver

  2. 304 Satin Stainless Steel

    304 Satin Stainless Steel

    304 Polished Stainless Steel

    304 Polished Stainless Steel

Enter your details:

Fixed Power 3 fire door closer incorporating the UK’s most innovative patented Ease of Access technology.

Rack and Pinion Fire Door Closer; Mechanical Action; Scissor Arm; Pull Side Fitting Only (Figure 1); Adjustable Latching & Speed as standard

CE Power SizeMaximum Door Weight/Width
3 60kg/950mm

Fire Tested: BS EN 1634

Body Specification:
Length (mm)Height (mm)Depth (mm)
200 50 40

Weight: 1.2kg

Meeting the requirements for Ease of Access

The following table shows the efficiency of the 303 along with its ability to meet the requirements detailed in BS 8300 and Approved Document M (ADM) at varying door widths.

Meets requirements of ADM at these door widths:

Power SettingEfficiency850mm875mm900mm950mm
3 70% - Yes Yes Yes

Minimum achievable door width 854mm

These results for minimum door widths were obtained via third party testing and meet the requirements of BS 8300 and ADM, however external factors such as hinges, seals, air pressure and variable fitting standards and positions may increase opening forces. Where these factors are out of the control of the Specifier, BS 8300 recommends: either the inclusion of an Electromagnetic Door Holder in conjunction with a Standard Door Closer; or alternatively to specify an Electromagnetic Hold Open or Swing Free Door Closer.

Electromagnetic Door Holder

These units can be used in conjunction with a Standard Door Closer to hold a door open to aid Ease of Access throughout a building but since they are also linked directly to the Fire Detection system, as soon as the fire alarm sounds, all doors fitted with Electromagnetic devices are closed to prevent the spread of fire and smoke.

For the full specification and more information regarding the use of an Electromagnetic Door Holder, please click here.

Cover Options: Available in Square or Flowline

Finish Options: Available in Silver as standard or Satin / Polished Stainless Steel. We can also offer quotes to match any existing ironmongery.

Material: Manufactured from British Extruded Aluminium and British Steel
