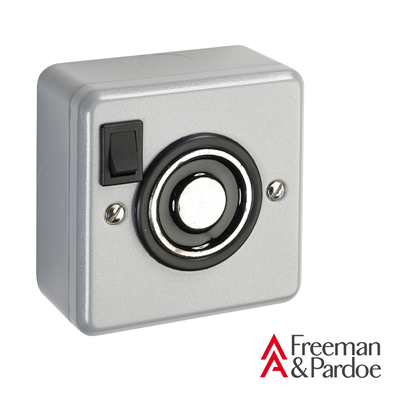

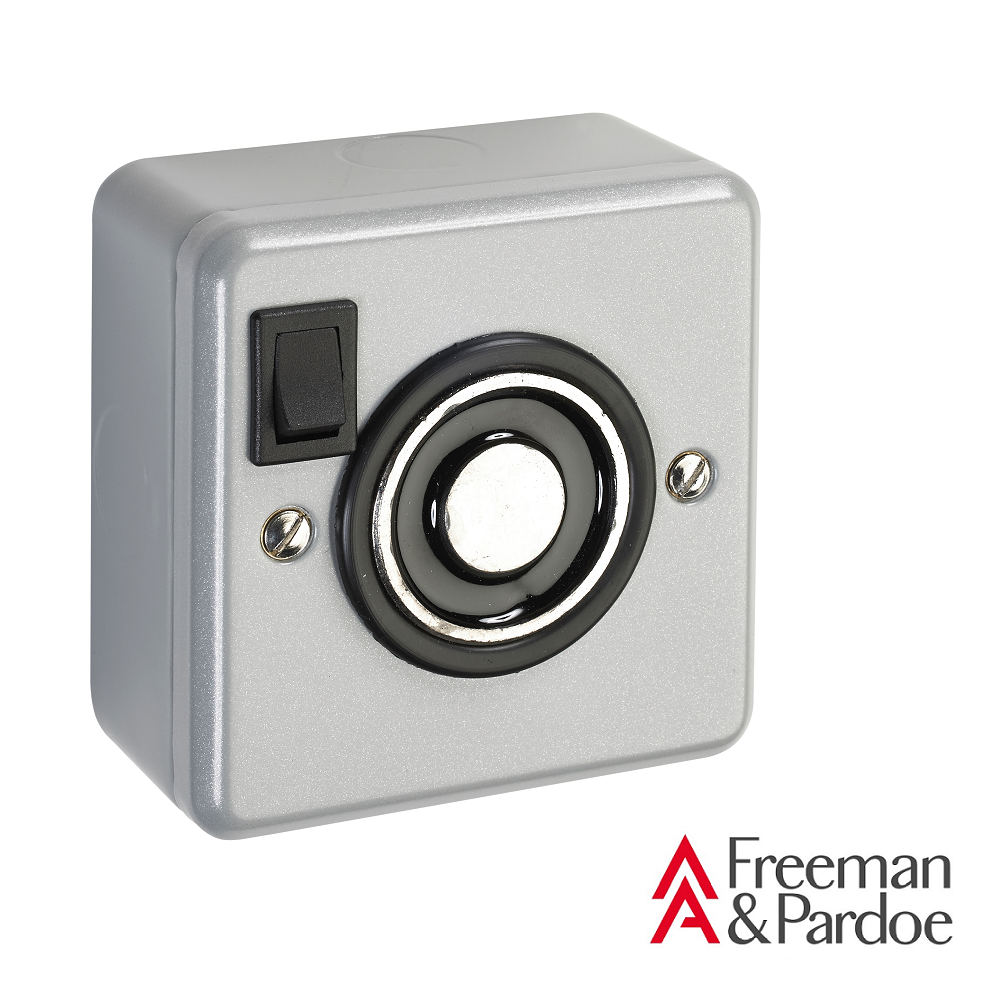

Arrow Electromagnetic Door Holder - Wall Mounted
Aside from the inclusion of an Electromagnetic Door Closer, the use of an Electromagnetic Door Holder is the only safe and legally compliant way (with respect to ADM and BS 8300) to hold fire doors open within a building.
The Electromagnetic Wall Magnet is linked directly to the buildings Fire Detection System so that in the event of a fire, all doors are automatically released from the hold open position and free to close to prevent the spread of flame and smoke throughout the building.
Aside from the inclusion of an Electromagnetic Door Closer, the use of an Electromagnetic Door Holder is the only safe and legally compliant way (with respect to ADM and BS 8300) to hold fire doors open within a building.
The Electromagnetic Wall Magnet is linked directly to the buildings Fire Detection System so that in the event of a fire, all doors are automatically released from the hold open position and free to close to prevent the spread of flame and smoke throughout the building.
Electromagnetic Door Holder; Incorporating a manual On / Off switch; Designed to be surface mounted to a wall; Can be fitted direct to walls or floor mounted
Standard Voltage:
24 Volt DC
Resistance:
330 0hms
Power:
1.75 Watts
Power Range Suitability:
3-7 in accordance with BS EN 1154
| Width | Height | Depth | |
| Box Dimensions | 86mm | 86mm | 52mm |
| Armature Dimensions | 57mm | 57mm | 19mm |

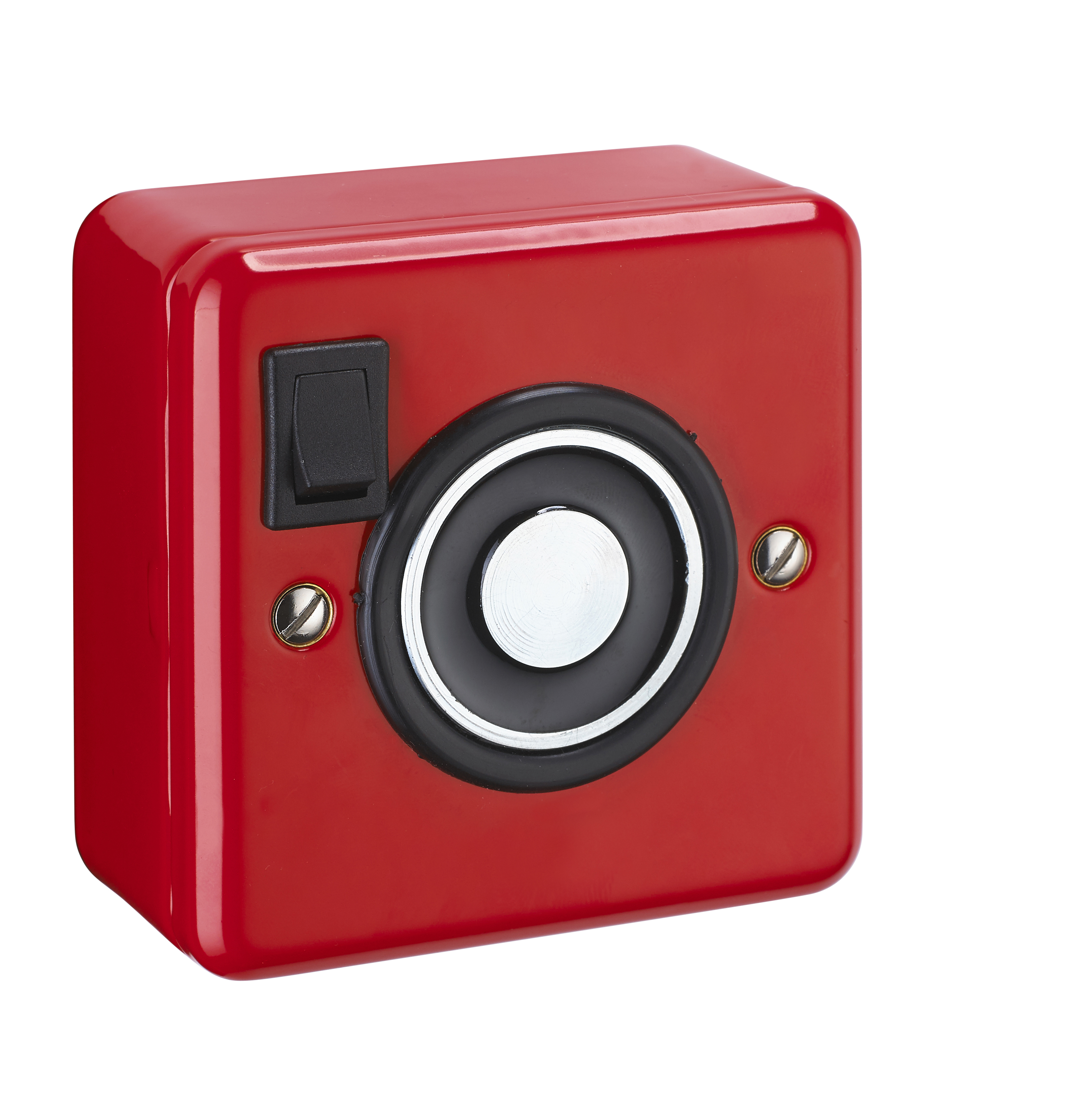

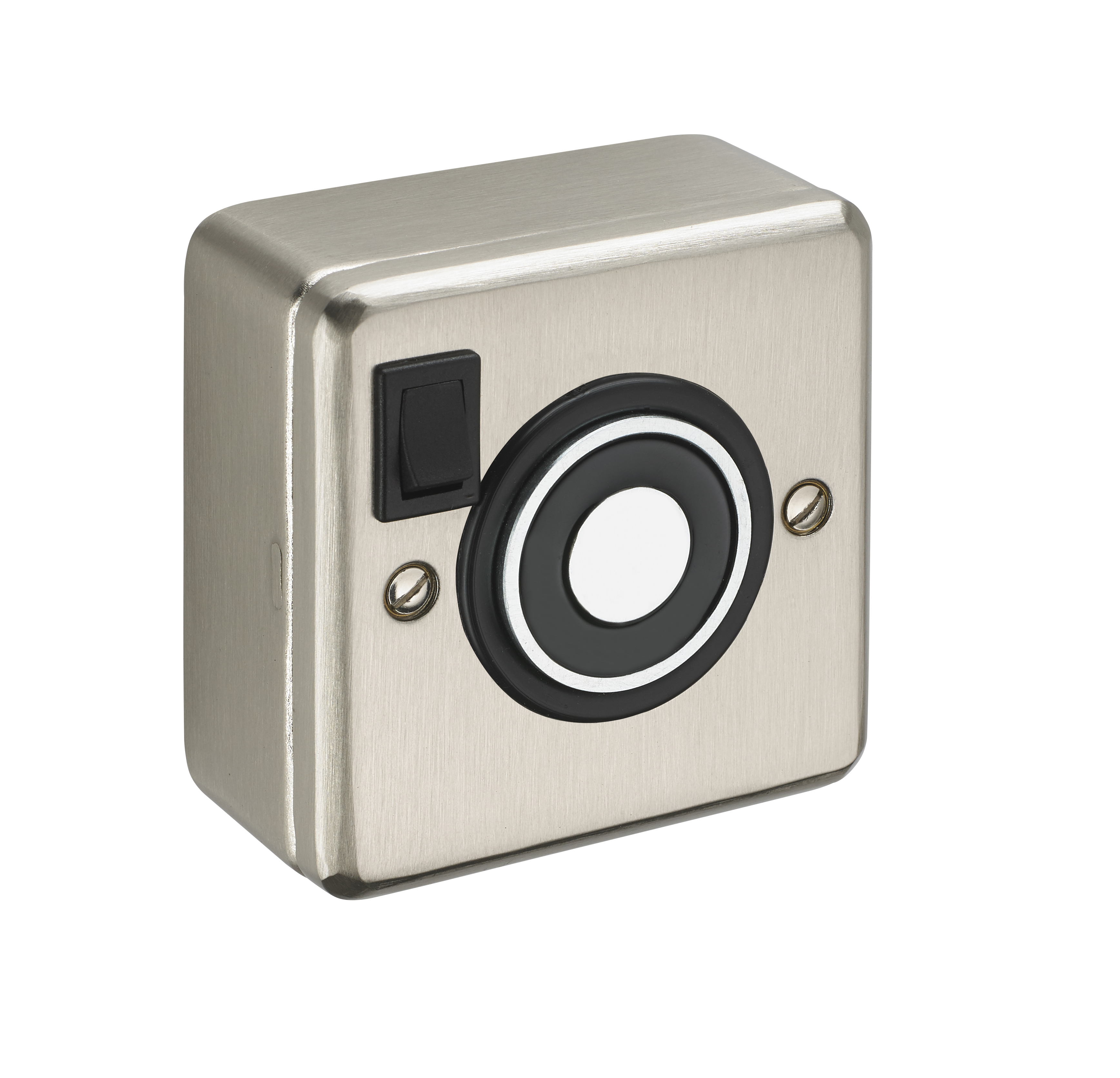

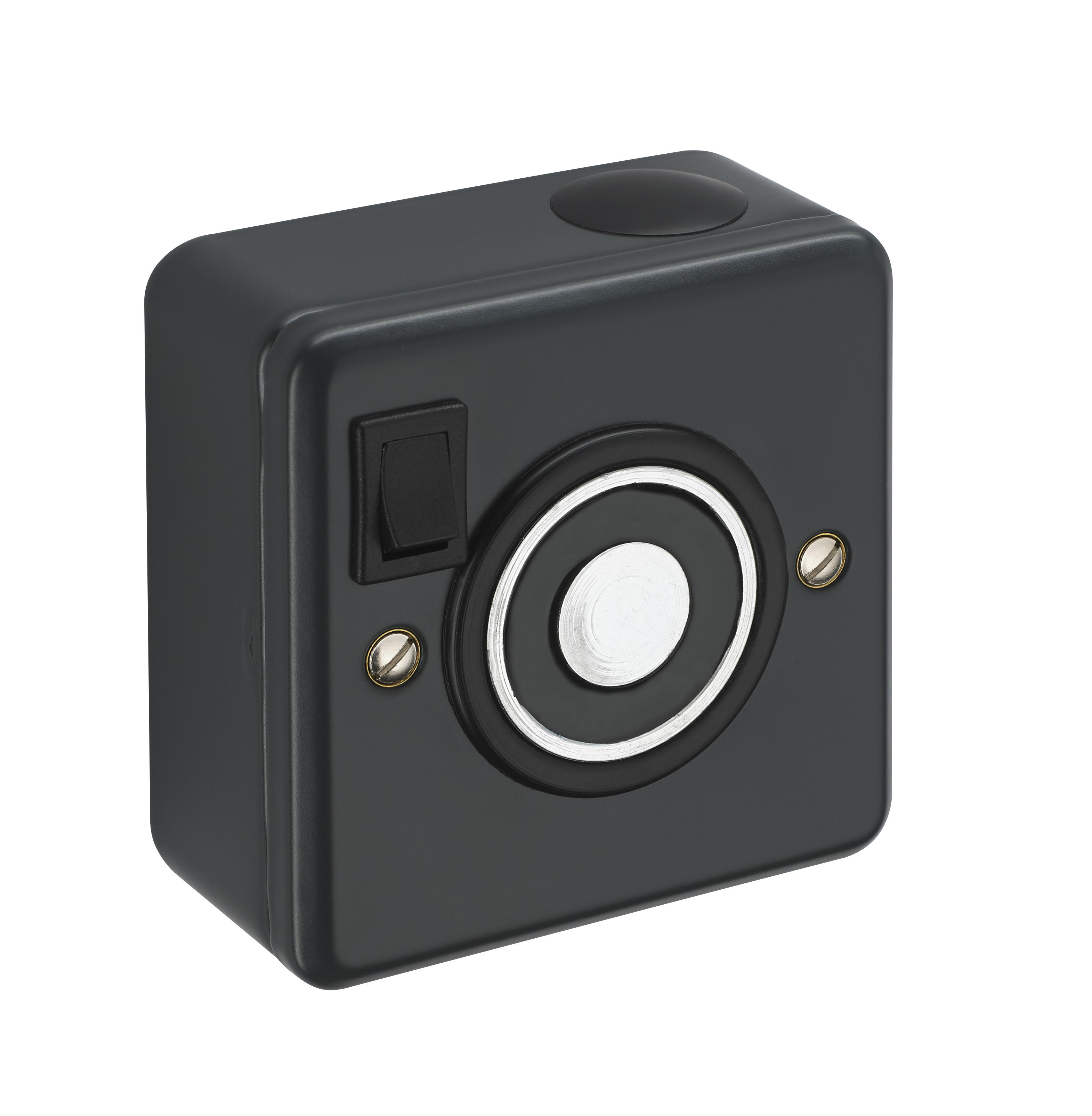

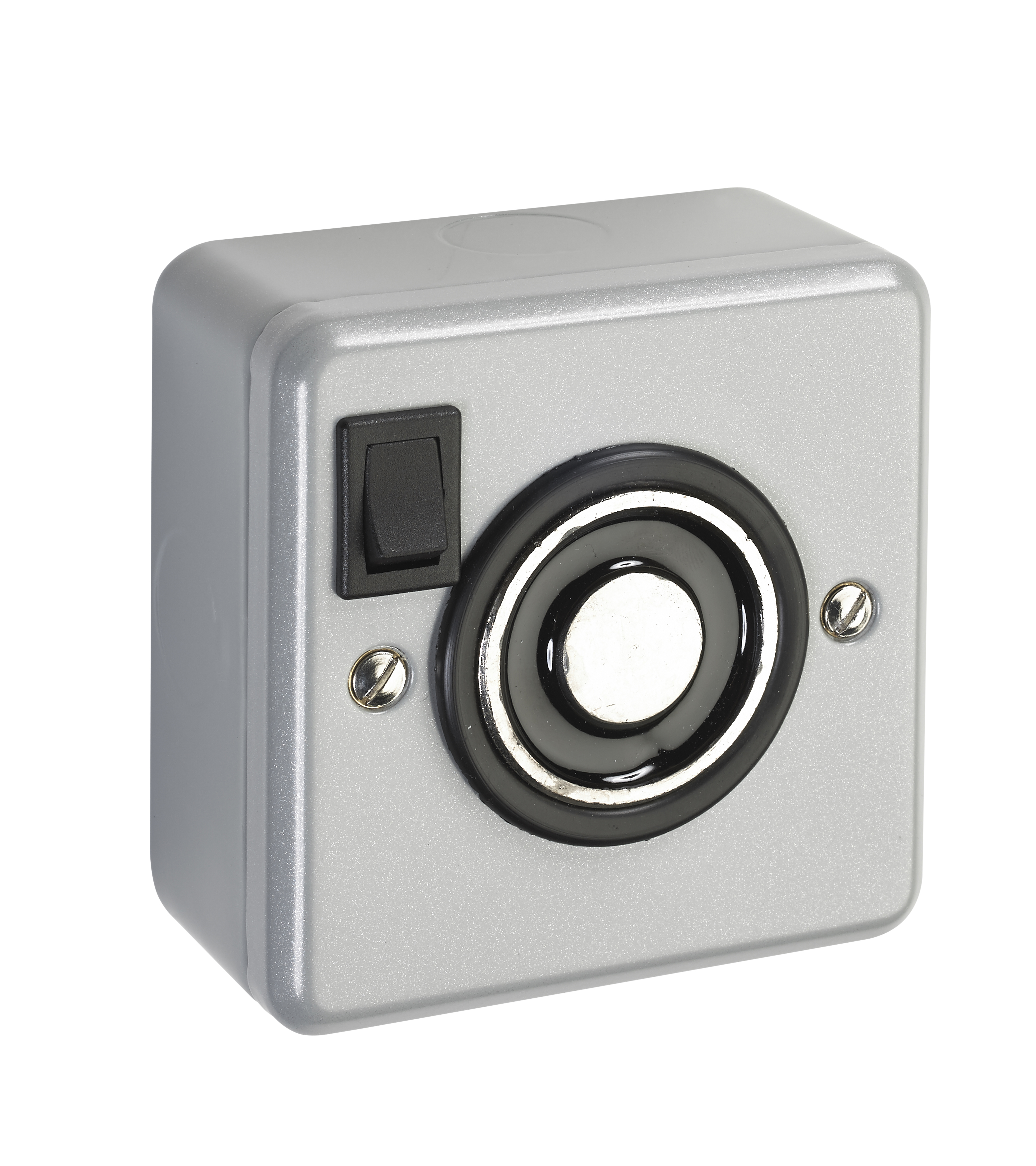

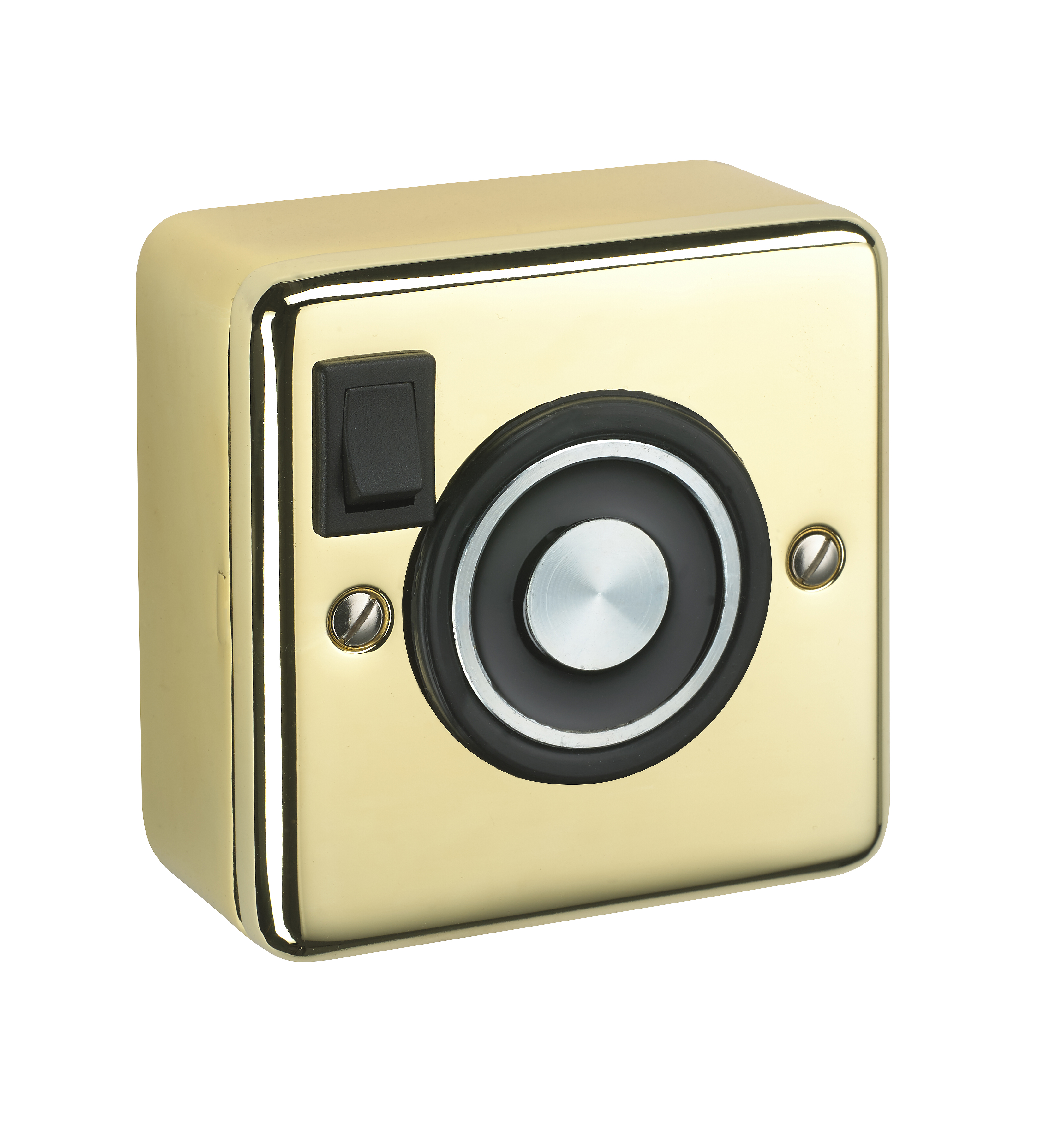

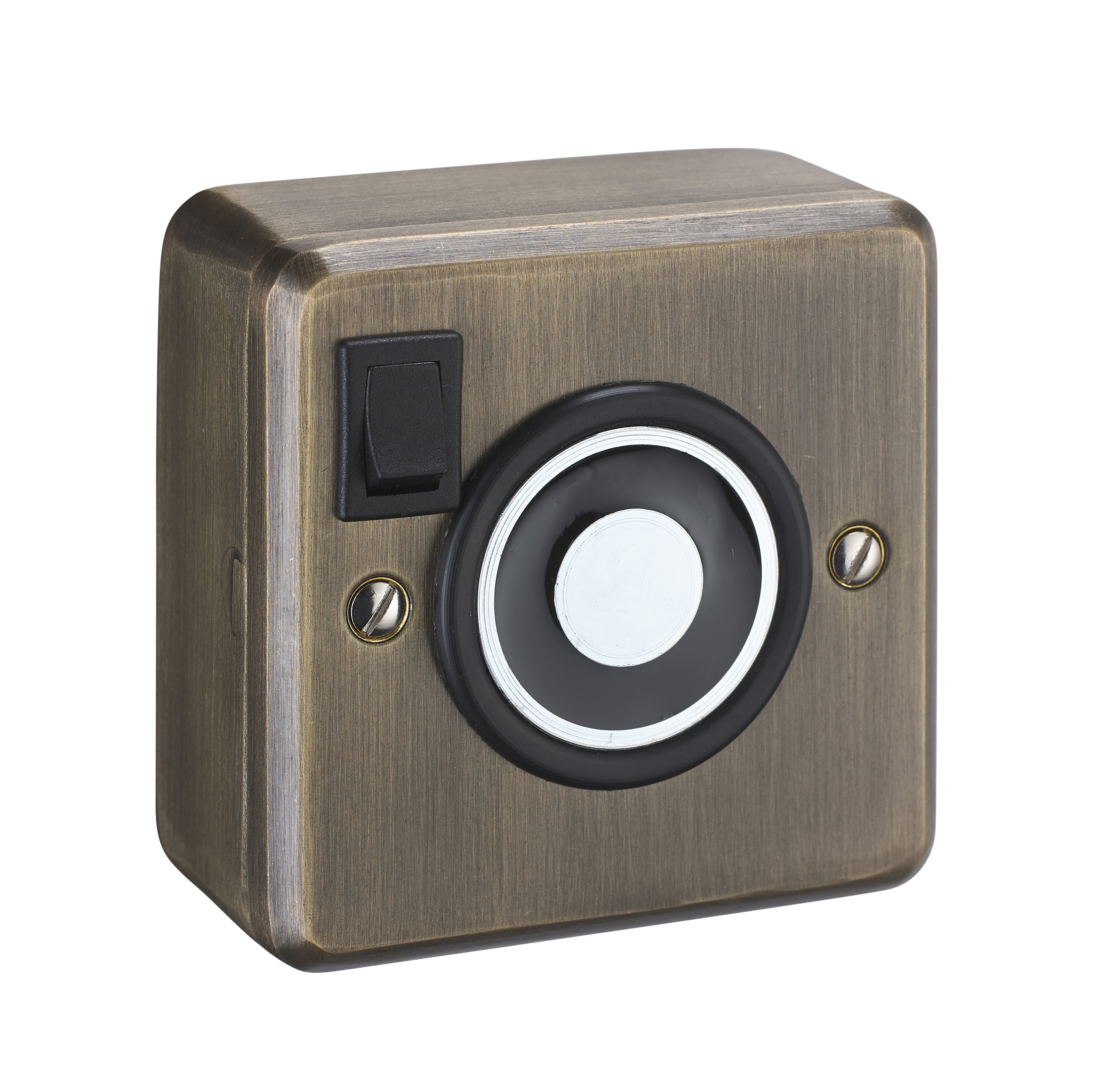

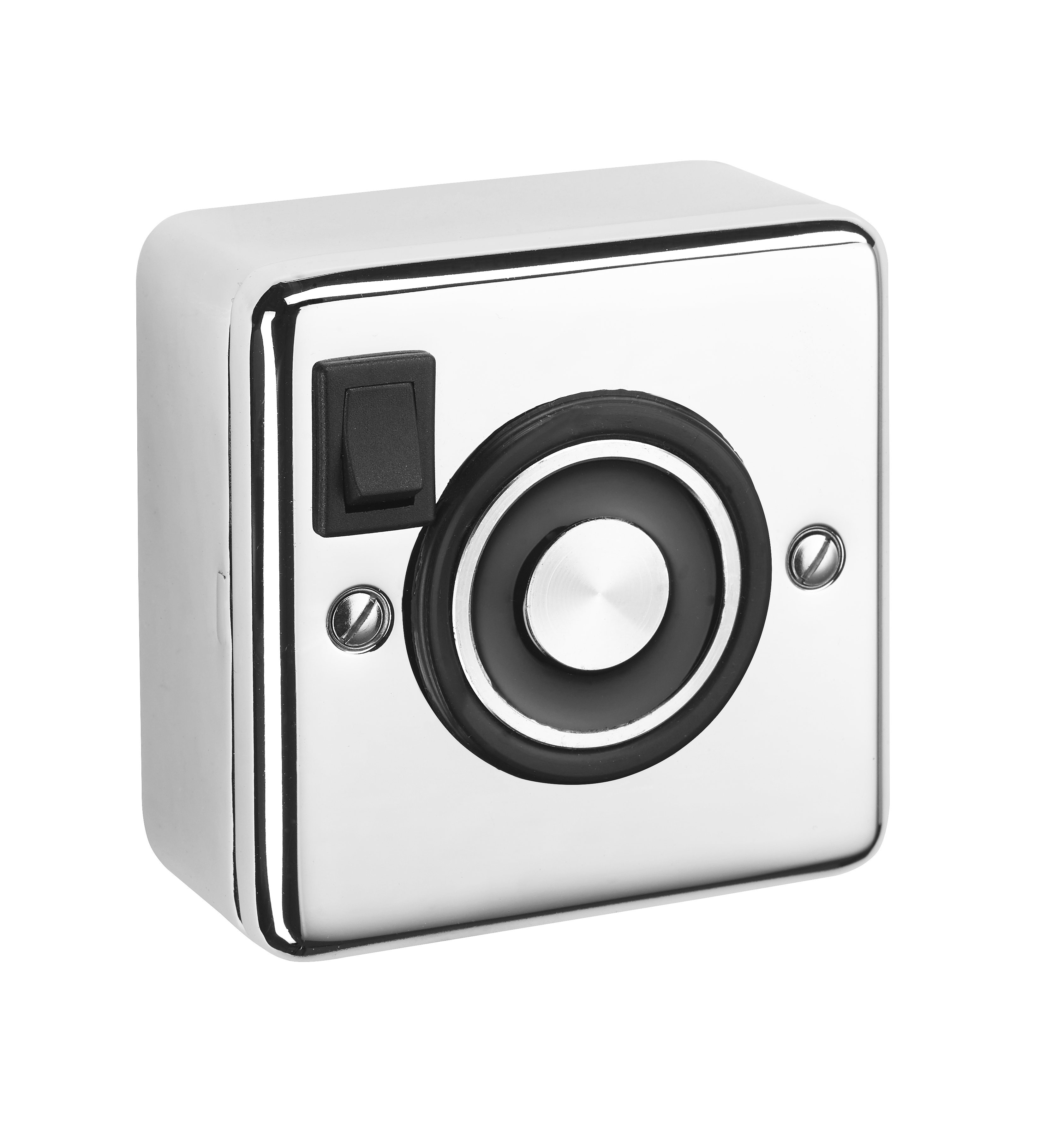

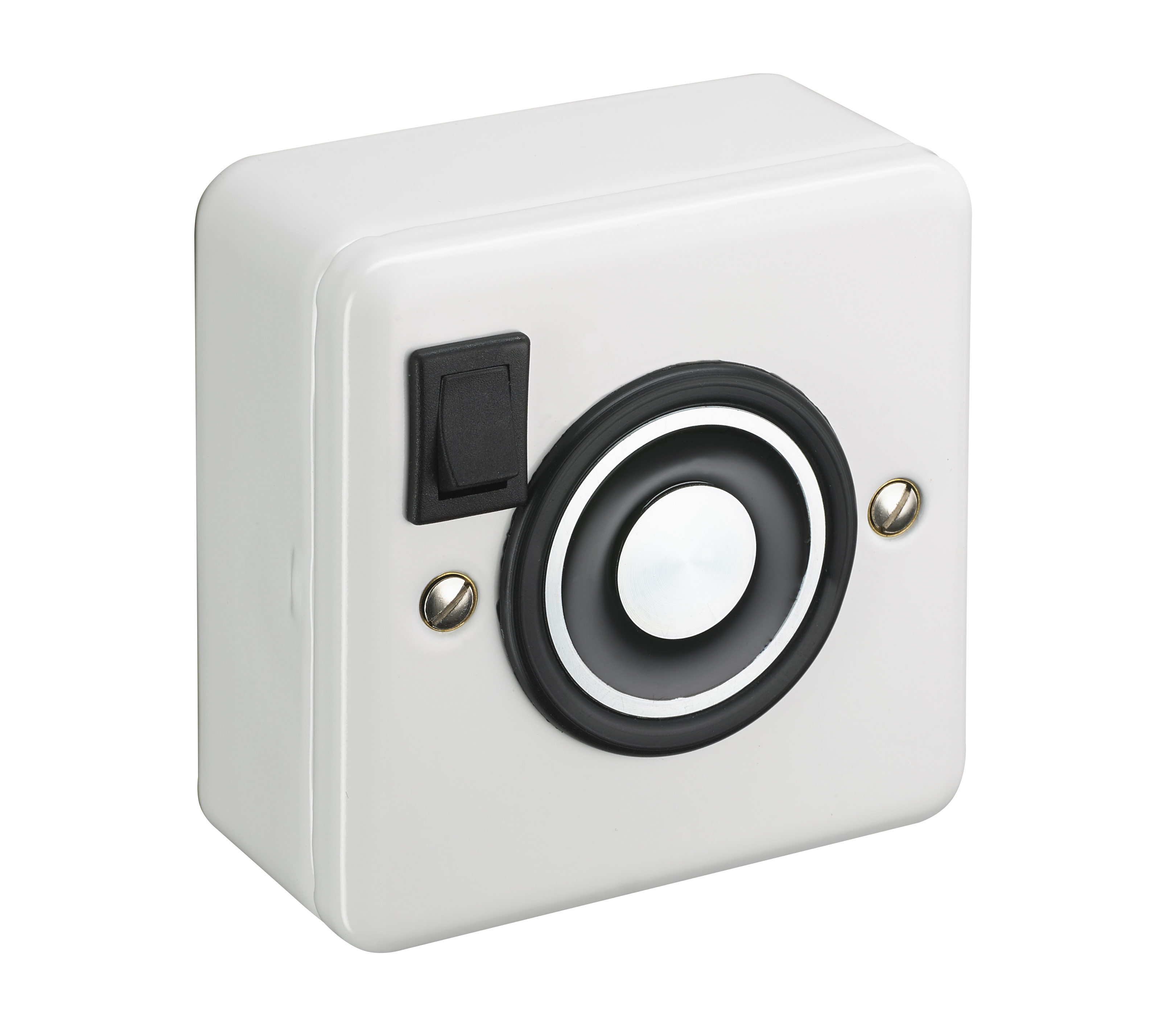

Finish Options: Available in Silver as standard or can be customised in one of our bespoke Metallic or Colour finishes. We can also offer quotes to match any existing ironmongery.
Material: Manufactured from British Extruded Aluminium and British Steel
